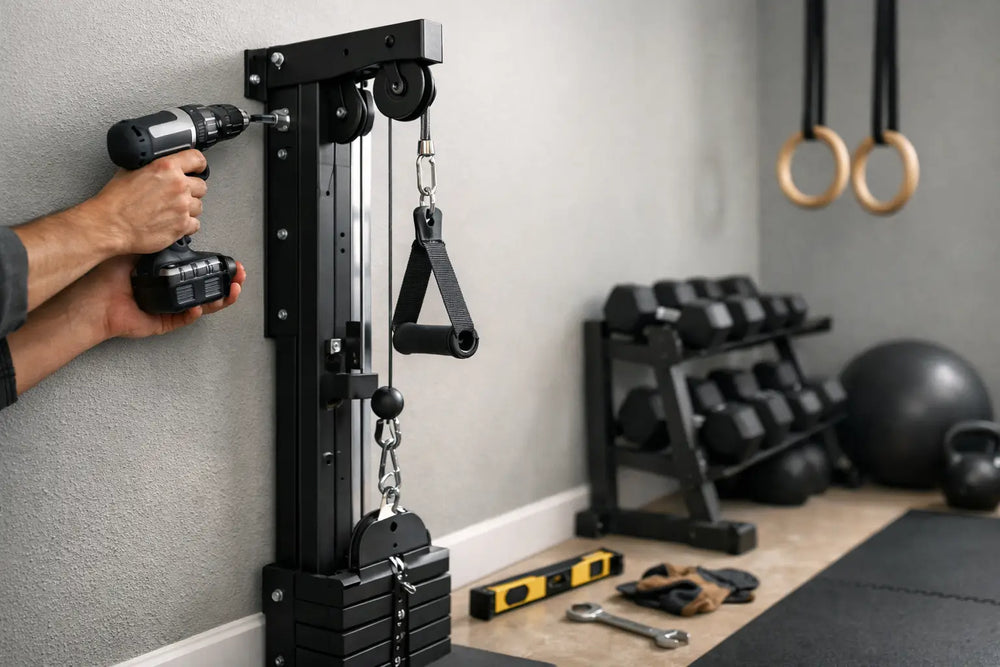

Install a Wall Pulley Safely in Your Home Gym
A wall pulley can turn a small training corner into a serious strength station. For armwrestlers, it gives you a direct way to train pronation, back pressure, cupping, side pressure patterns, and controlled cable work without needing a full commercial gym. But the strongest handle in the world means nothing if the mounting point fails. To install a wall pulley safely, you need more than a drill and a few bolts - you need a wall structure and setup that can handle the direction of force your training creates.
A pulley setup is often loaded at an angle, not straight down. That changes everything. A mount that seems fine for a light storage rack may not be right for hard rowing, lat pulldowns, or armwrestling-specific hits. Build the station like you plan to get stronger on it, because you will.
Install a Wall Pulley Safely: Start With the Wall
The wall is the foundation of the whole system. Drywall by itself is not a mounting surface for a loaded pulley. It is only a finish layer. Your pulley must be fastened into structural framing, masonry, or another manufacturer-approved load-bearing structure.
For a standard wood-framed home gym, locate the wall studs with a reliable stud finder, then confirm their position with a small test hole if necessary. Most residential studs are spaced 16 inches on center, though spacing can vary. A wall-mounted pulley bracket should normally be secured directly into solid studs, not into drywall anchors, toggle bolts, or thin paneling.
Concrete and solid masonry walls can be excellent mounting surfaces, but they require the correct masonry anchors, bit, and installation depth. Hollow block, brick veneer, old plaster walls, and metal studs are different situations. Do not assume that a wall feels solid because it sounds solid when you knock on it. If you cannot positively identify the structure behind the surface, stop and get help from a qualified contractor.
The pulley system's instructions should state what type of wall it can be mounted to, what hardware is required, and the system's rated capacity. Follow those requirements first. If the included hardware does not match your wall construction, do not improvise with random screws from a hardware drawer.
Choose Hardware for the Load and the Direction of Pull
A pulley station experiences dynamic force. The stack, plates, cable tension, and your body movement can create forces beyond the number shown on the loading pin. A hard armwrestling-style pull, a sudden rep, or a cable reaching the end of its travel can shock-load the mounting hardware.
Use the bolts, lag screws, washers, and anchors specified by the pulley manufacturer. Hardware must be long enough to achieve meaningful engagement in the stud or masonry, but it must not be so long that it risks penetrating wiring, plumbing, or another hidden hazard. A stud-mounted system may require structural lag screws or through-bolts, depending on the bracket design and load rating.
Before drilling, gather the right equipment:
- Stud finder and pencil
- Level and tape measure
- Drill and correct drill bits
- Socket or wrench set
- Manufacturer-specified mounting hardware
- Safety glasses and a vacuum for dust
If your pulley system uses a wall plate or upright track, inspect it before installation. Bent steel, damaged welds, stripped threads, or a pulley wheel that does not spin freely are reasons to pause the build. Training equipment should feel dependable before the first plate goes on.
Set the Height Around Your Training, Not Guesswork
Pulley height depends on what you train. A high anchor is useful for lat pulldowns, triceps work, and high-angle armwrestling movements. A lower anchor can be better for back pressure, rising, and certain drag-focused drills. Many athletes get more value from an adjustable pulley track because it allows the line of resistance to match the movement instead of forcing the movement to match the machine.
Think about your main training positions before choosing the height. Stand where you will train and picture the cable path. You need clearance for your head, hands, handles, and plates. You also need enough room to step back without running into a bench, armwrestling table, wall, or low ceiling.
For table work, the cable should pull in a direction that supports the drill. If the cable angle pulls your shoulder into an awkward position, the setup may build poor mechanics or aggravate your elbow. This is especially relevant when training side pressure. Keep the load conservative, set your body position first, and avoid chasing max weight on a wall pulley.
Leave open space around the station. Nobody wants a handle snapping back toward a mirror, a rack, or training partner. If the pulley uses weight plates, make sure the plates travel without dragging across the floor, hitting trim, or contacting your feet.
Mount It With Control, Then Inspect Every Connection
Once your marks are confirmed, drill pilot holes where the manufacturer requires them. Pilot holes help prevent wood splitting and make it easier to drive structural fasteners straight. Do not overtighten bolts to the point that you crush drywall, distort the bracket, strip threads, or damage the stud.
Tighten each fastener evenly. The mounting plate should sit flush against the wall with no rocking, gaps, or movement. If the bracket shifts while you tighten it, remove it and find out why. Shimming a loaded pulley with loose scraps of wood or washers is not a serious fix unless the manufacturer specifically calls for it.
After the bracket is mounted, install the pulley, cable, loading pin, carabiners, and handles according to the system instructions. Check that each carabiner closes fully and that the cable sits correctly inside every pulley wheel. A twisted cable, cross-loaded carabiner, or worn attachment point can fail long before the wall mount does.
Look over the system from the side. The cable should run cleanly through the pulley without rubbing sharply against the bracket, wall, or hardware. If it does rub, correct the alignment before loading the machine.
Test the Setup Before You Train Hard
Your first test is not a max-effort pronation lift. Start with no weight and move the handle through the full range of motion. Listen for clicking, popping, scraping, cable binding, or a bracket shifting against the wall.
Then add a very light load and repeat the movement slowly. Watch the wall plate, fasteners, pulley wheel, cable ends, and loading pin. Ask a training partner to observe if possible. A small movement at the mount is a red flag, not something to monitor later.
Increase load gradually across several sessions. This matters even more if you are building a new home gym in a basement, garage, apartment, or older home where wall construction may be less predictable. Test the movements you actually plan to use: pulldowns, rows, curls, wrist flexion, and your armwrestling handle work can all pull from different angles.
Never exceed the lowest-rated component in the system. That could be the bracket, cable, carabiner, loading pin, anchor, handle, or wall structure. A heavy-duty handle does not raise the rating of a light-duty pulley. The whole chain must be capable of handling the load.
Keep a Safe Pulley Station Safe
A properly installed wall pulley still needs regular checks. Before hard sessions, inspect the cable for fraying, flattened spots, kinks, corrosion, or damaged end fittings. Check that pulley wheels spin smoothly and that bolts remain tight. If a fastener repeatedly loosens, stop using the station until the cause is fixed.
Keep the training area clear, especially if you use detachable handles or a strap. Do not let children use the station unsupervised, and do not leave loaded plates suspended when the pulley is not in use. Controlled reps protect your joints, your equipment, and your wall better than jerking through heavy weight.
Ezreal Armwrestling Club athletes know that specialized training pays off when the setup supports real work. Put the same attention into your mounting job that you put into your grip, wrist, and table training. A secure wall pulley gives you a reliable place to build strength rep after rep - and lets you focus on becoming harder to beat at the table.
